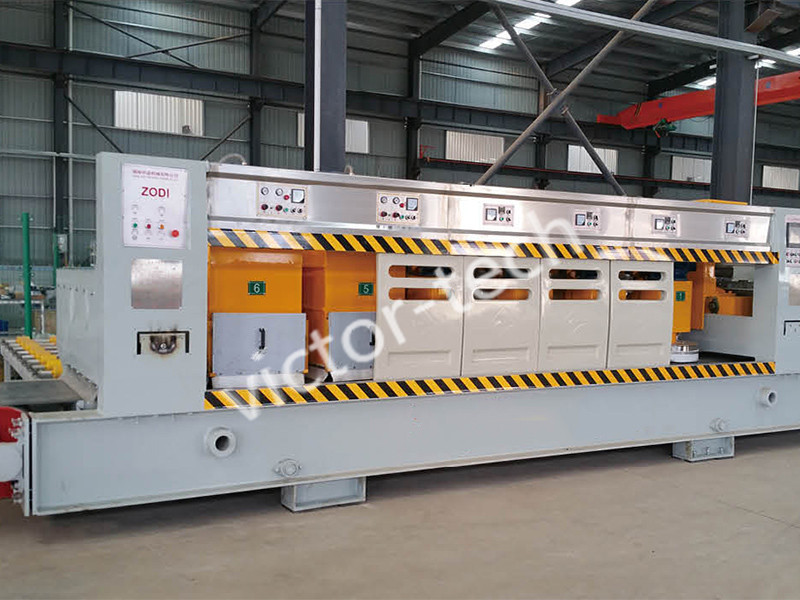

This machine provides robust grinding power on processing the surface of slabs to achieve the desired thickness,through high speed rotating disc with diamond segments.Our calibrating machine ensures the slabs flat and homogeneous,thereby increasing the production capacity and quality of the polishing process,and lower the cost.
Technical Parameter
Model | ZYD800 | ZYD1650 |
Roller Heads | 4-10a | 6-10a |
Work Width | 600-800 mm | 600-1660 mm |
Work Thickness | 10-40 mm | 10-40 mm |
Convieying Speed | 0.5-5/.min | 0.5-5/.min |
Conveyor Motor | 1.5-3 kw | 2.2-5.5 kw |
Swing Motor | 2x4 kw | 2x4 kw |
Grinding Head Motor Power | 18.5 kw | 18.5 kw |
Water Consumption | 210 L/min | 320 L/min |
