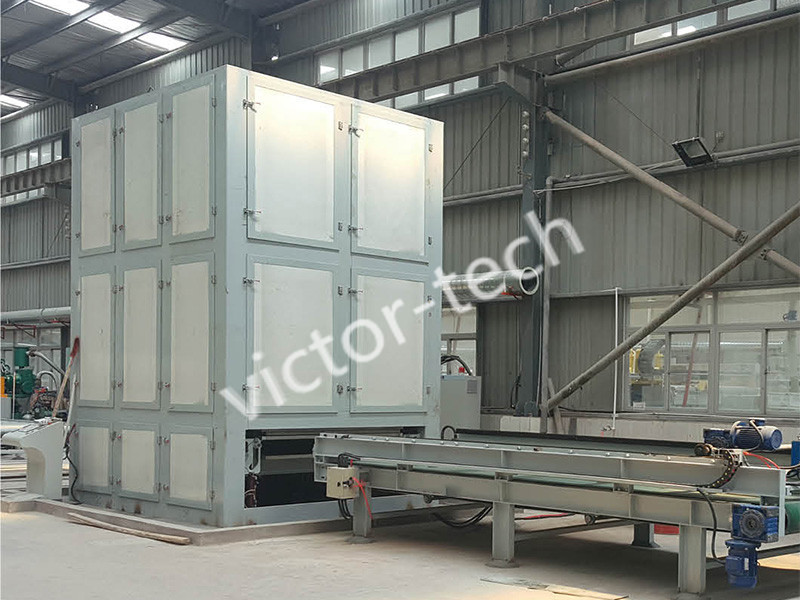

This Curing Oven can process 3280*1650mm slabs.10 to 18 slabs can be processed at a time.The slab is compacted by 2 heating boards.The upper and lower boards heating can be adjusted independently so that the slab can be heated evenly and avoid deformation.
Iron and aluminum are optional for the heating board.Hydraulic oil cylinder lifter is used for iron board,and screw type lifter is used for the aluminum board.
Technical Parameters
Name | Splint Curing Oven （Iron Splints） | Splint Curing Oven （Aluminum Splints） |
Curing Time | 45-70 min | 45-70 min |
Curing Temperature | 45-150°C | 45-150°C |
Plywood Floors | 10-16 | 14-18 |
Lifting Mode | Cylinder | Screw |
Baking Mode | 2 Folder 1 | 2 Folder 1 |
Tolar Power | 174.7-214.7 kw | 184.2-224.2 kw |
Dimension | 3750X3050X5000mm | 3750X3050X6000mm |
